Fence Mesh Welding Machine

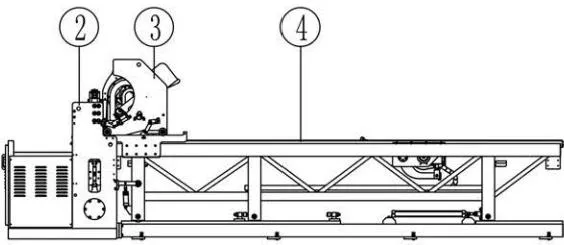

Layout
① Line wire support frame ②Main welding machine ③ Cross wire hopper ④Servo motor pull mesh
Basic parameter
| GWC1200/1600/2100/2500/3000B | GWC1200/1600/2100/2500/3000B |
| Mesh width 1200/1600/2100/2500/3000mm | Wire diameter 3.0-5.0mm |
| Mesh length ≤6000mm | Number of electrodes 24/32/40/51/60Pcs |
| Cross wire space ≥50mm | Transfomer 125KVA×3/4/5/6/8 |
| Line wire space 50-200mm | Tolerance of diagonal line ±2mm(when 2m length) |
| Welding speed 60-80times/min | Welding material: black wire,galvanized wire |
Description of machines

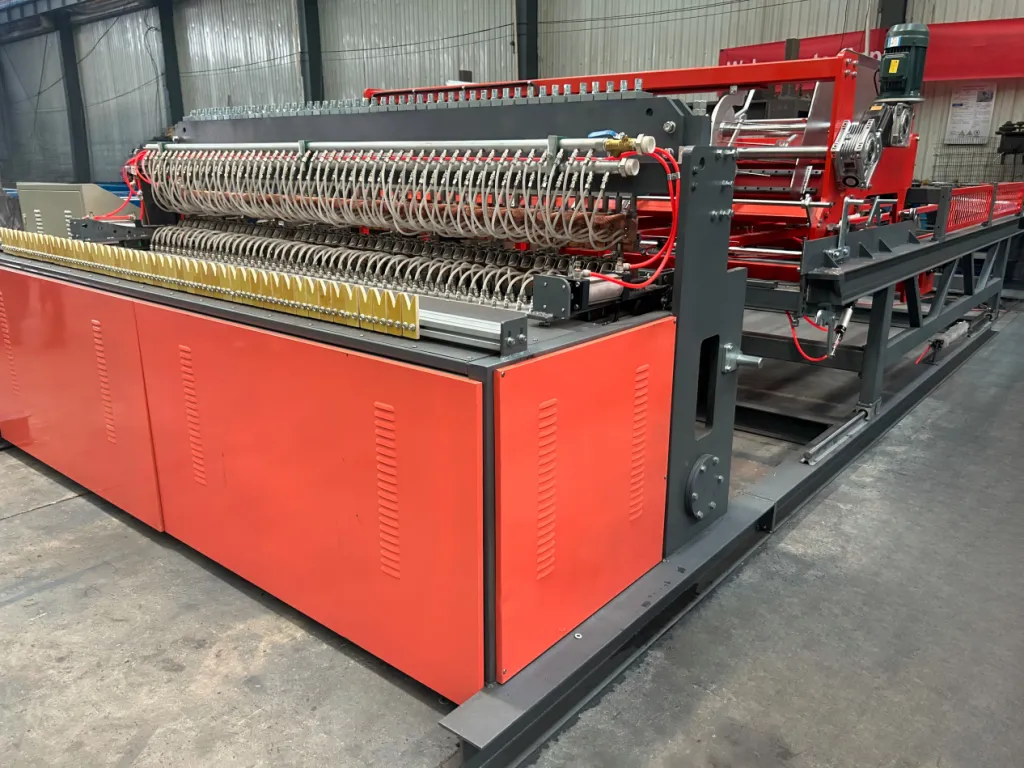

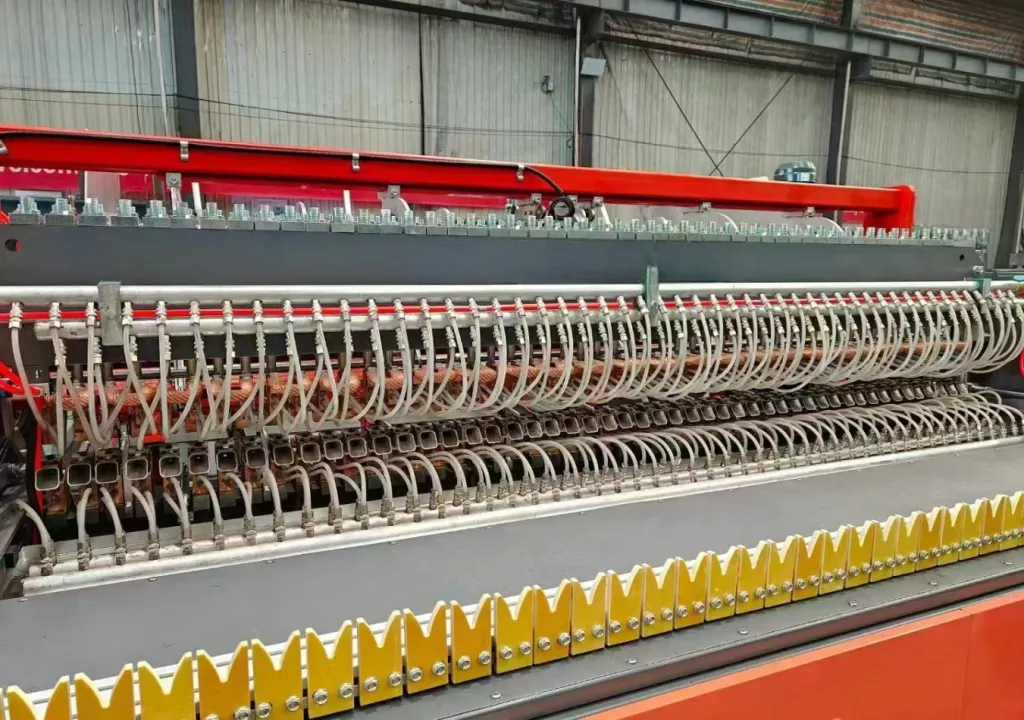

Main welding machine
A main welding machine is a device that applies pressure and electricity to the positioned longitudinal and transverse lines to form weld points.
◆The upper contact compression spring has a service life of more than 10,000,000 times under rated load.
◆Longitudinal wire threading positioning devices are provided to ensure that the diagonal error of the mesh is within ±1mm per meter.
◆The solder mask transformer has a power of 125KVA per unit and is equipped with a cooling water circulation and temperature control detection switch to prevent the transformer from burning out.
◆The electrode blocks are made of chromium-zirconium copper with hardness HRB≥78 and conductivity ≥50MS/m, in the form of 35×35×18 cubes, and the working surfaces are interchangeable to improve the utilization rate of the electrode blocks.

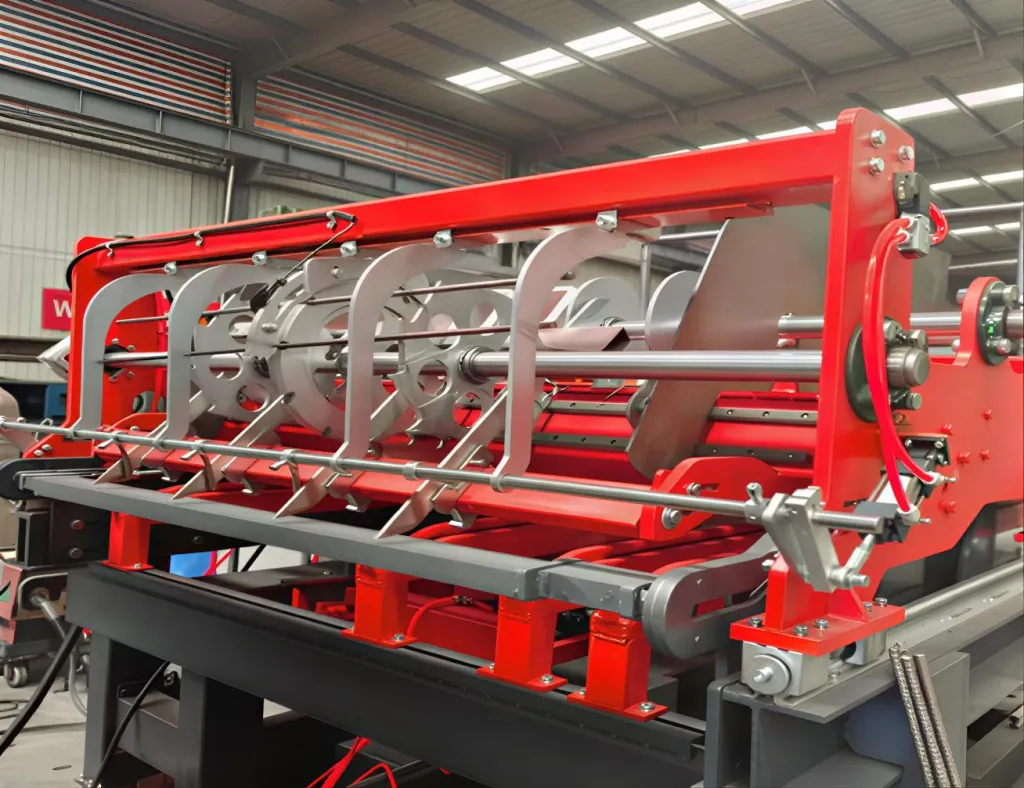

Cross wire hopper
A cross wire hopper is a crossline automatic blanking device suitable for a certain length or wire diameter, installed on a movable wire frame and moving along with the wire frame.
◆ Equipped with transverse wire gripper detection to ensure continuous operation of the welding machine.
◆ Use disc rolling slot wheel wire feeders to feed the transverse wire into the blanking position respectively.

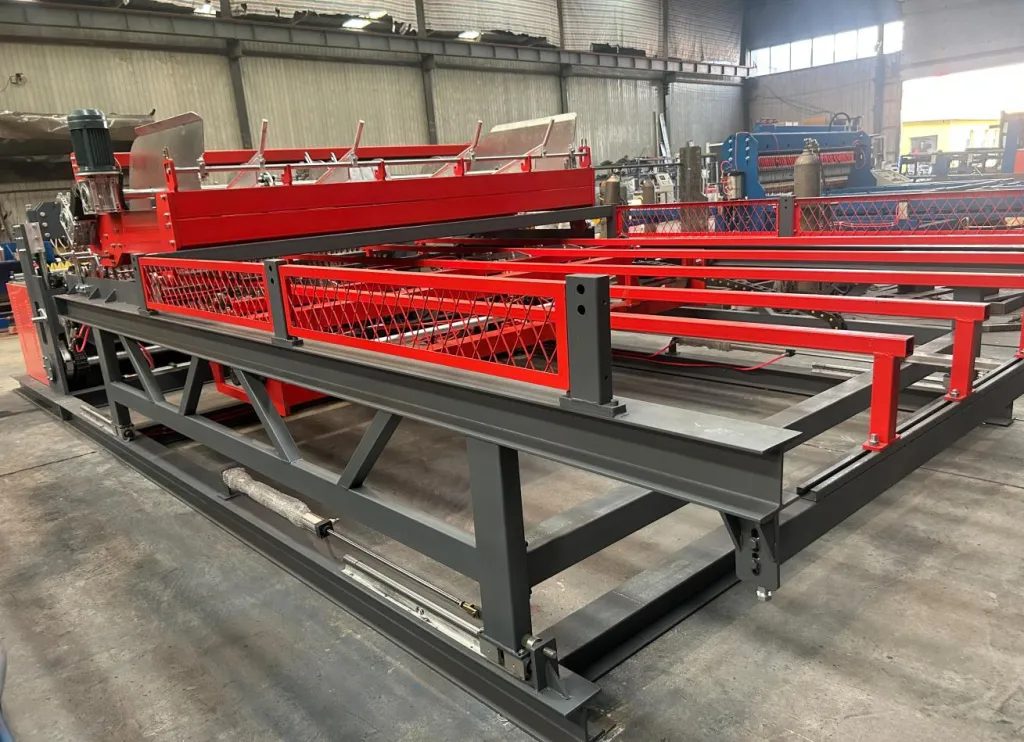

Automatic mesh pulling system
◆Servo-controlled mesh pulling, high-precision output mesh: The mesh pulling trolley is controlled by a Japanese Panasonic servo motor and planetary reducer, resulting in high mesh pulling accuracy and small error.

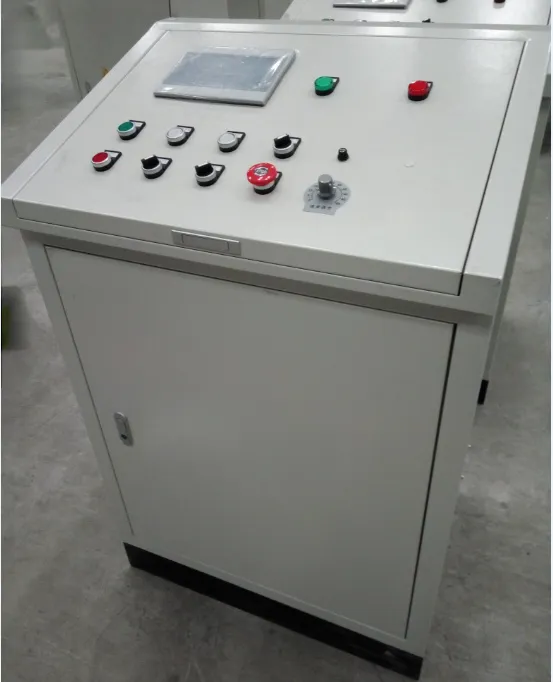

Control System
◆ PLC programmable control system with touchscreen operation interface.
◆ Each functional structure is equipped with a fault detection device and an automatic alarm shutdown function.
◆The specifications of the mesh and the operating parameters of each mechanism are set through the touch screen interface.

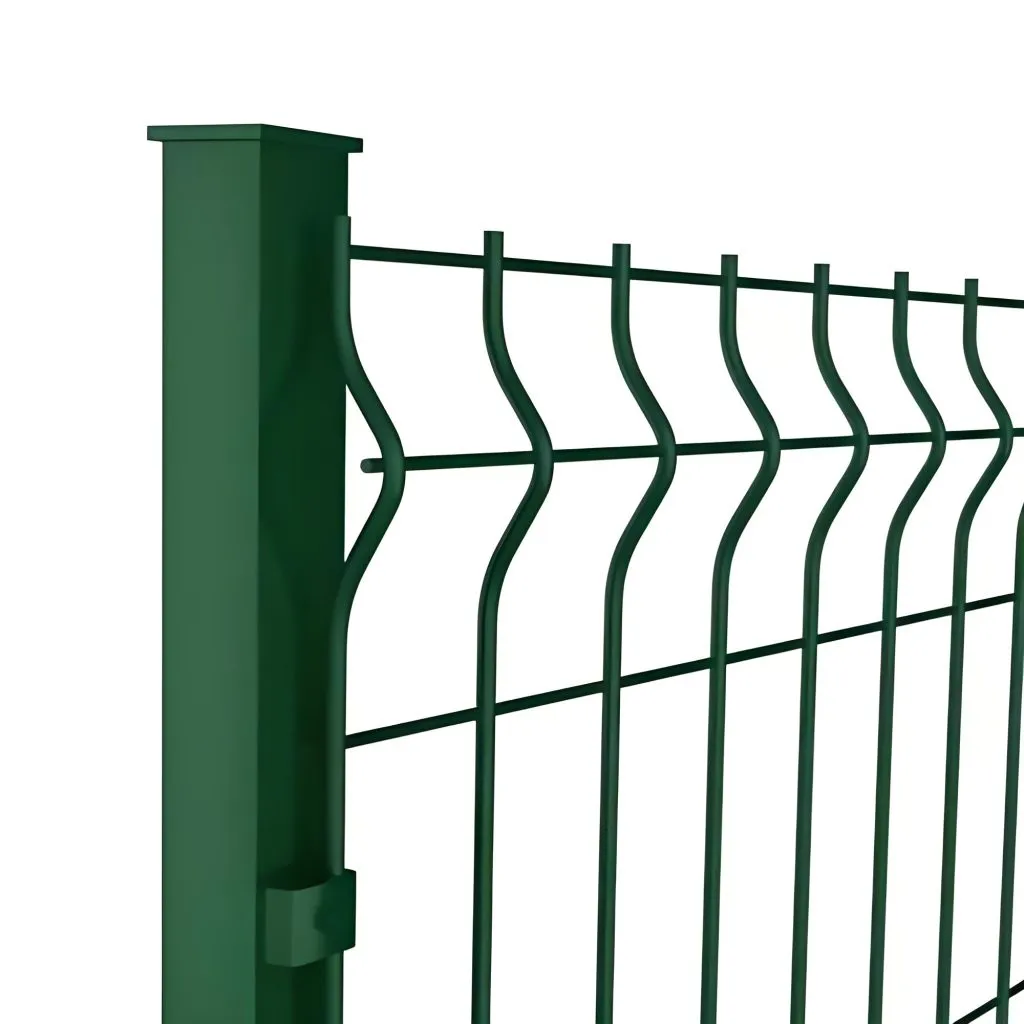

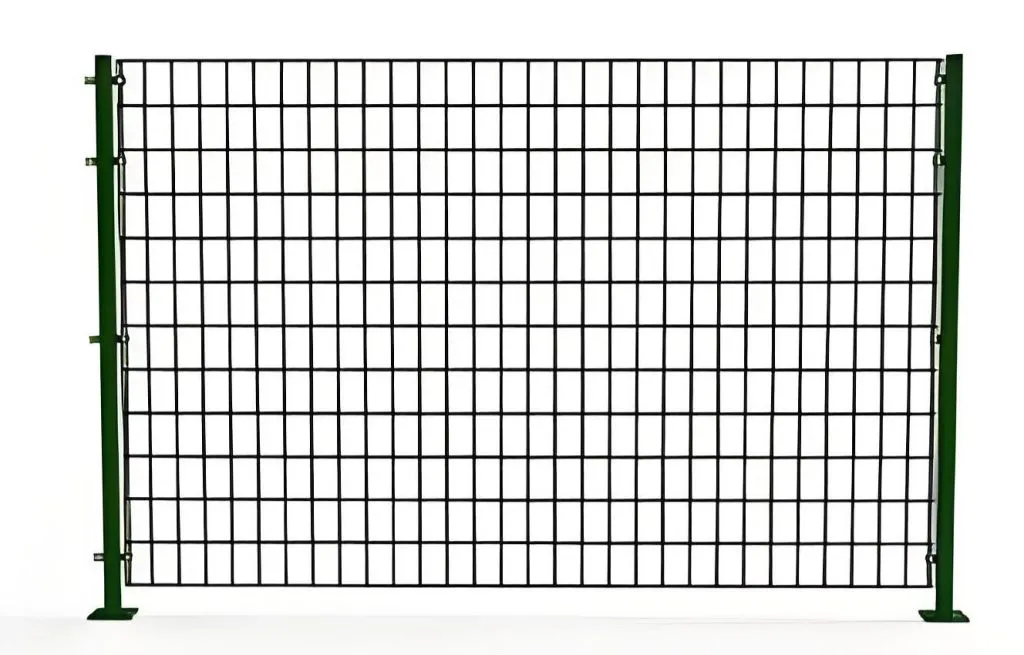

It can produce a 2D fence mesh ; if you need to produce 3D fence mesh, you need to equip a bending machine and bend manually.

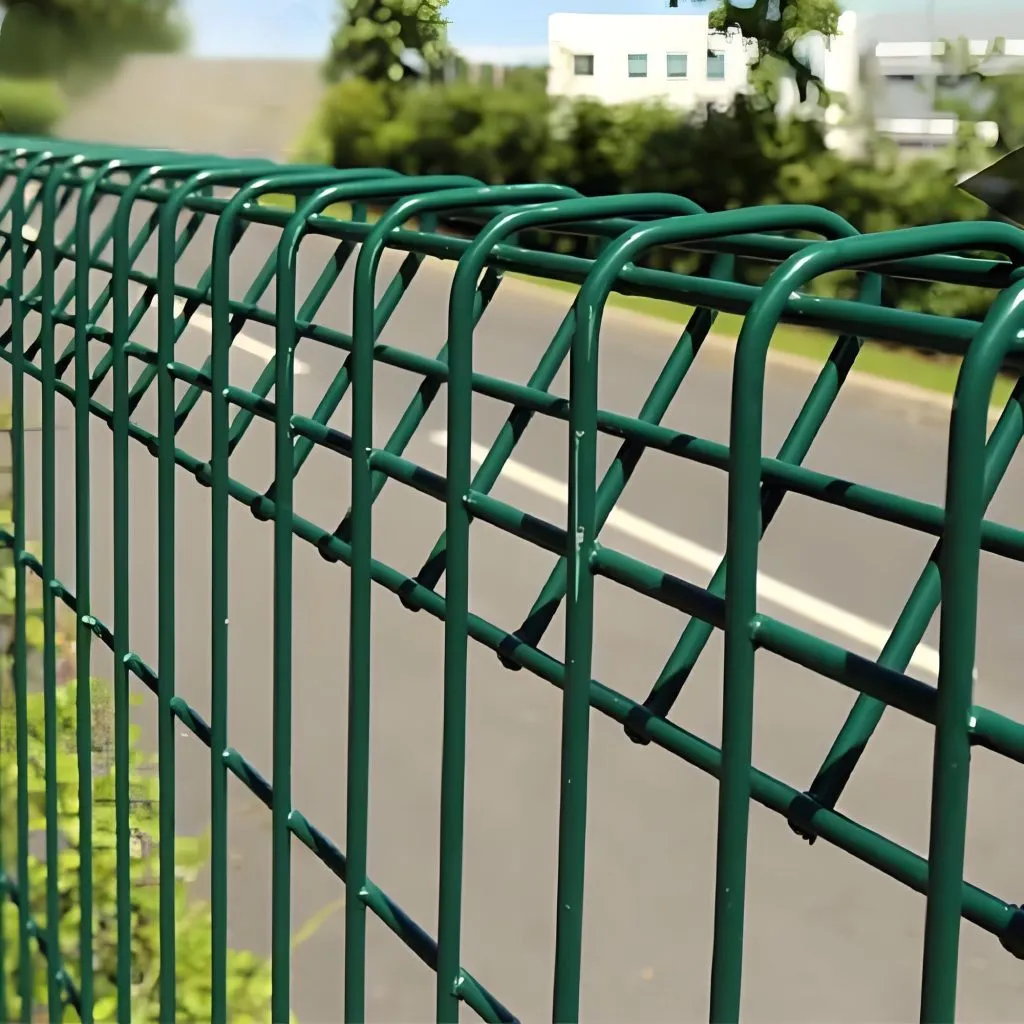

Application
Service of reinforcing mesh welding machine
Pre-Sales Support:
• We first gain a thorough understanding of each customer’s specific reinforcement mesh specifications, then tailor-make exclusive solutions to match their production needs.
• Global clients are warmly invited to visit XINGFEI’s factory, with complimentary services including airport transfer, catering arrangements and hotel reservations.
• We arrange on-site demonstrations of wire mesh welding machines in operation, produce samples according to customer-specified standards, and assist clients in the measurement and inspection of finished products to ensure compliance.
In-Sales Support:
• Customers can get in touch with XINGFEI’s engineering team at any time to inquire about the progress of equipment manufacturing, ensuring full transparency throughout the process.
• After equipment quality inspection is finalized, a full trial run is conducted. Clients are welcome to visit the factory for goods inspection, and we also provide trial run videos and photos of finished products for remote verification.
After-Sales Support:
• XINGFEI provides comprehensive guidance materials, including reinforcement mesh welding machine layout drawings, installation videos, debugging tutorials and detailed operation manuals.
• 24/7 online technical support is available, with all equipment-related issues resolved within 48 hours to minimize downtime during trial runs and formal production.
• Upon customer request, XINGFEI can send professional engineers overseas to conduct on-site equipment installation, debugging, and hands-on training for workshop staff to ensure proficient operation.
• We offer a fast-response spare parts service that covers the entire global market, ensuring timely supply of replacement parts when needed.
• XINGFEI’s engineers conduct regular on-site visits to overseas customer factories to perform equipment maintenance and repairs, effectively extending the service life of the machines.
