MINING SUPPORT NET WELDING MACHINE
Basic parameter
| GWC1200/1600/2100/2500/3000I | GWC1200/1600/2100/2500/3000I |
| Mesh width 1200/1600/2100/2500/3000mm | Wire diameter 3.0-8.0mm |
| Mesh length ≤6000mm | Number of electrodes 12/16/20/24/32Pcs |
| Cross wire space ≥100mm | Transfomer 125KVA×3/4/5/6/8 |
| Line wire space 100-200mm | Tolerance of diagonal line ±2mm(when 2m length) |
| Welding speed 60-80times/min | Welding material: black wire,galvanized wire |
这是示例文本，单击 “编辑” 按钮更改此文本。
Layout

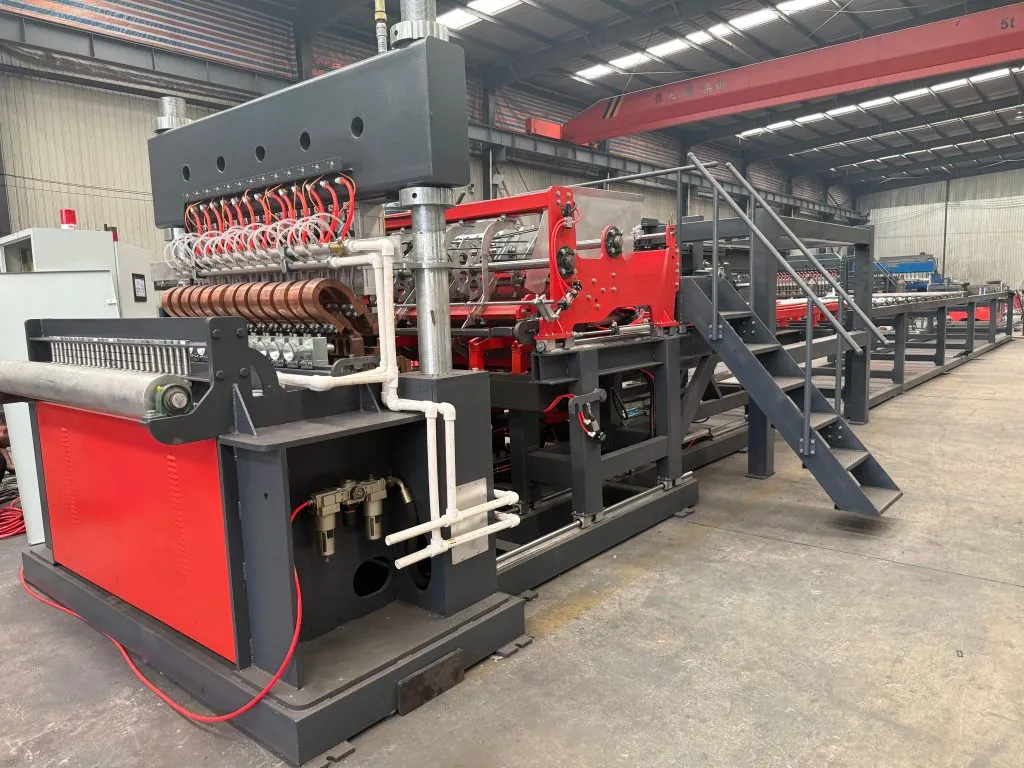

① Line wire support frame ②Main welding machine ③ Cross wire hopper ④Servo motor pull mesh
Description of machines
Main welding machine
A main welding machine is a device that applies pressure and electricity to the positioned longitudinal and transverse lines to form weld points.
◆ Pneumatic-driven welding system cuts power consumption while delivering outstanding production throughput.
◆The solder mask transformer has a power of 125KVA per unit and is equipped with a cooling water circulation and temperature control detection switch to prevent the transformer from burning out.

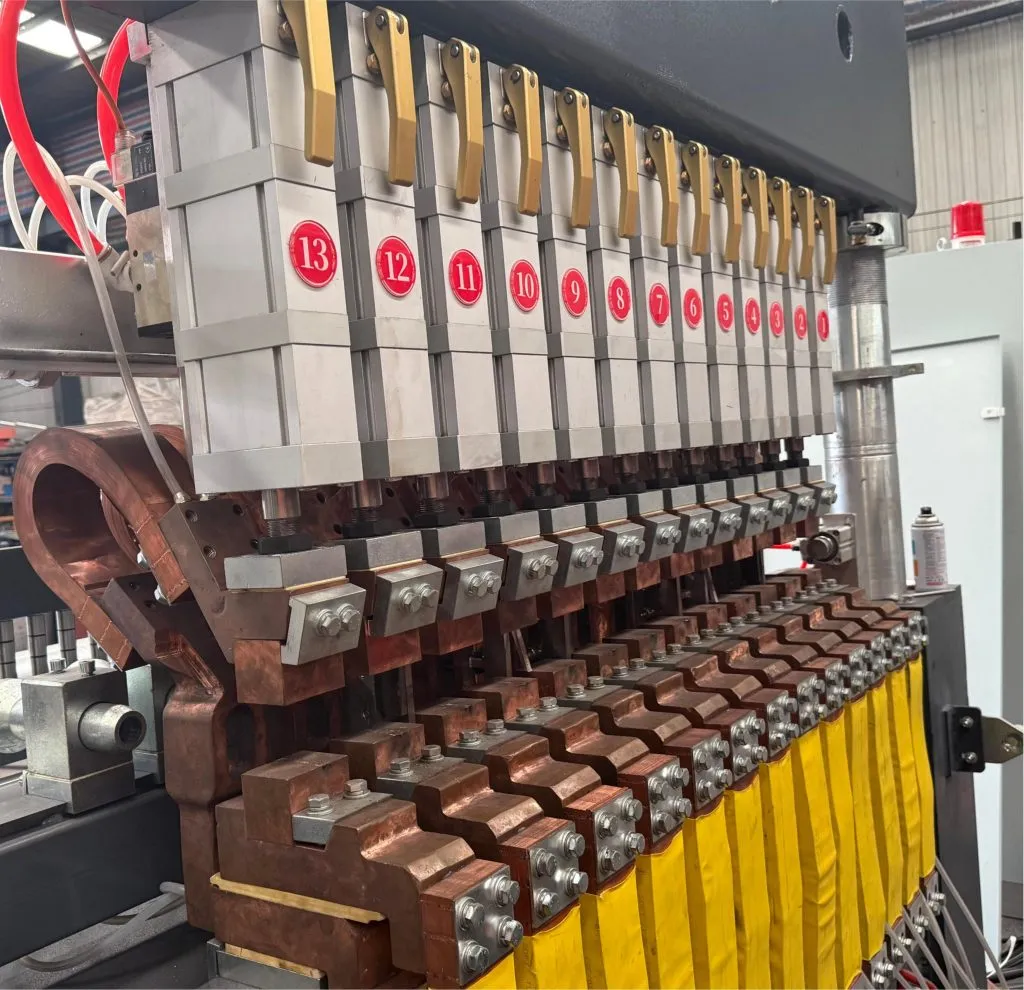

◆The electrode blocks are made of chromium-zirconium copper with hardness HRB≥78 and conductivity ≥50MS/m.
Cross wire hopper
◆ Storage capacity of 2 tons, reduce feeding frequency and increase production efficiency.

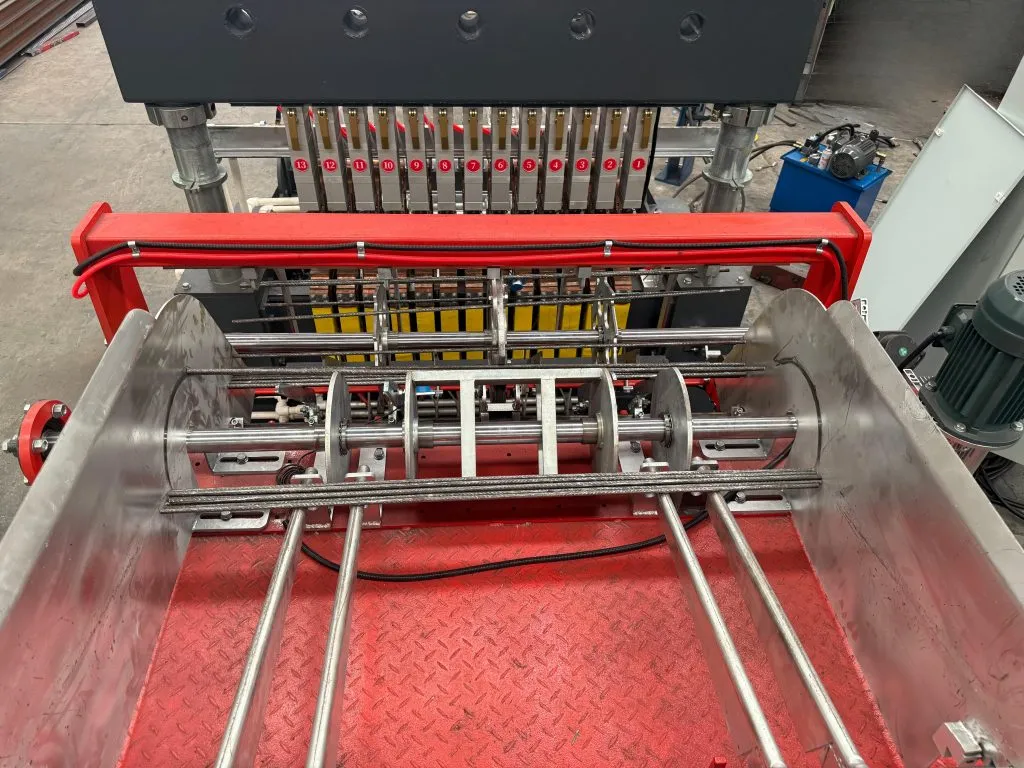

The blanking hopper uses a disc-shaped wire separator for precise wire separation. According to the welding requirements, each transverse wire is evenly fed into the welding head position one by one with a chain.
Automatic mesh pulling system
◆Servo-controlled mesh pulling, high-precision output mesh: The mesh pulling trolley is controlled by a Japanese Panasonic servo motor and planetary reducer, resulting in high mesh pulling accuracy and small error.
Control System
◆ PLC programmable control system with touchscreen operation interface.
◆ Each functional structure is equipped with a fault detection device and an automatic alarm shutdown function.
◆The specifications of the mesh and the operating parameters of each mechanism are set through the touch screen interface.
Application of Mining Support Net
Widely applied to various underground mining projects including coal mines, metal mines and non-metal mines. It is mainly used for safety support of underground tunnels, mining working faces, return airways and transportation roadways. It is also suitable for tunnel excavation, underground chamber construction, mine slope reinforcement, open-pit mine slope protection and other geotechnical projects. Besides, it can be used for underground zone isolation and construction partition protection, blocking falling debris and providing a full-range safety barrier for equipment and personnel operation.
