Wire Mesh Cable Tray Welding Machine
Layout

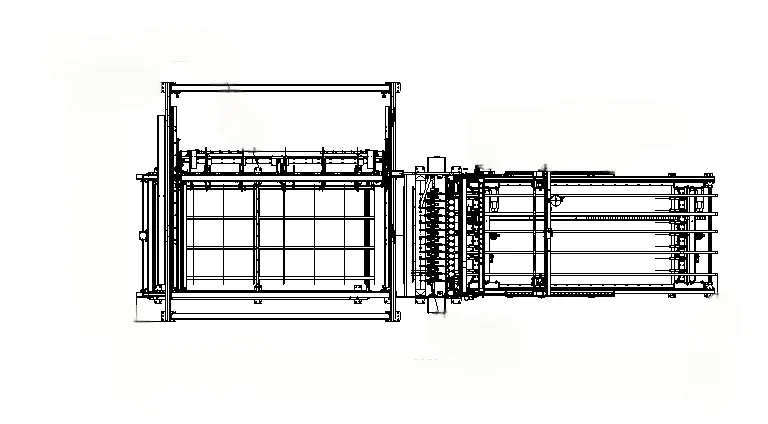

1.Line wire auto feeder 2.Main welding machine 3.Cross-wire hopper 4.Round-trip mesh pull machine
Basic parameter
| Model | XFW-1600G |
| Mesh width | 1600mm |
| Mesh Length | 3000mm |
| Wire diameter | 3-6mm |
| Line wire pitch | 25-200mm(fixed) |
| Cross wire pitch | 50-200mm |
| Welding speed | Max. 15-20times/min |
| Transformer | 180KVA*2PCS |
| Welding point | 13pcs |
| Wire feeding | Pre-cut& auto feeding |
| Control method | PLC |
Description of machines
Line wire auto feeder
◆The line wires are automatically arranged and pushed together and feed automatically, saving labor。
Main welding machine

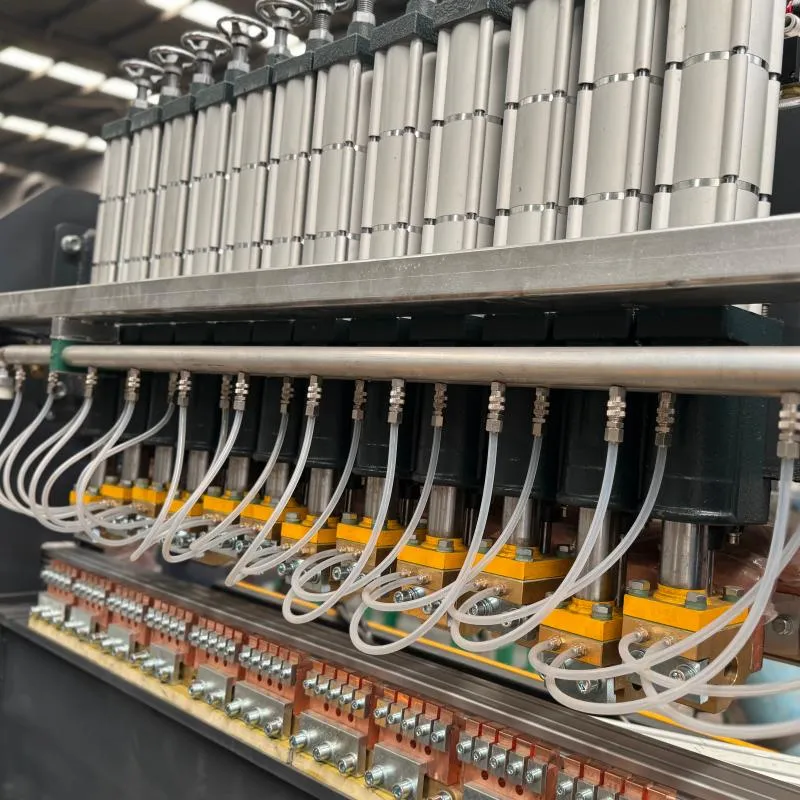

The electrode block is made of high-quality chromium-zirconium copper.
◆.Continuous production and durable equipment: Advanced water-cooling technology ensures stable operation of the transformer in high-temperature environments. It guarantees high consistency in welding current output, extends the transformer’s service life, and prevents shutdowns and equipment damage caused by overheating of the leads.
◆ Equipped with a cross wire testing device,which guarantee the cross wire falling more precise.
Cross-wire hopper
◆ The cross wire magazine can load 1.5 tons of materials to improve production efficiency.

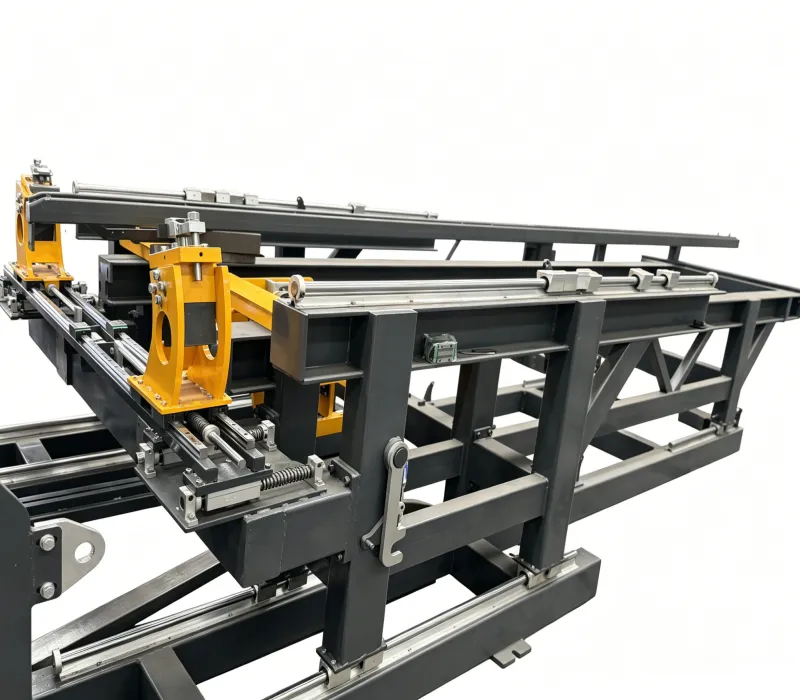

Round-trip mesh pull machine
◆Servo motor control with high-precision rack.
◆The pulling frame can be moved, which is convenient for operation and maintenance.
Automatic garb &stack system
◆The automatic grab&stack system can realize the functions of automatic grasping and palletizing of mesh sheets.
Control System
◆ PLC programmable control system with touchscreen operation interface.
◆ Each functional structure is equipped with a fault detection device and an automatic alarm shutdown function.
◆The specifications of the mesh and the operating parameters of each mechanism are set through the touch screen interface.
Foreign brand equipment
◆Weinview (Taiwan) Touch screen
◆Panasonic (Japan) PLC
◆Panasonic (Japan) Servo motor
◆Schneider (France) low-voltage apparatus
◆Delta (Taiwan)power supply
◆SMC(Japan) cylinder and Solenoid valve

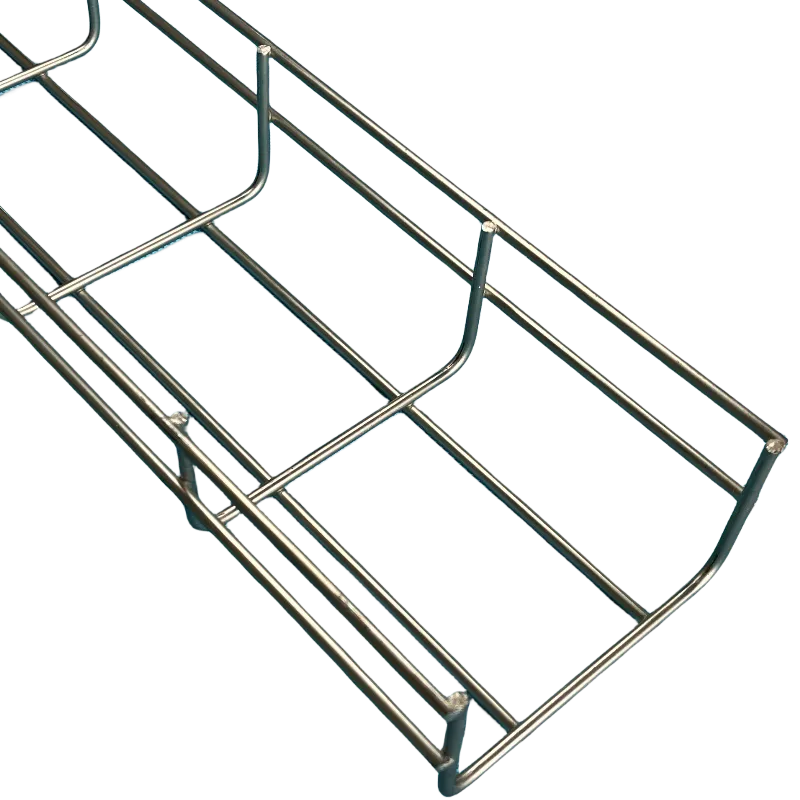

Application Scope of Wire Mesh Cable Tray Welding Machine

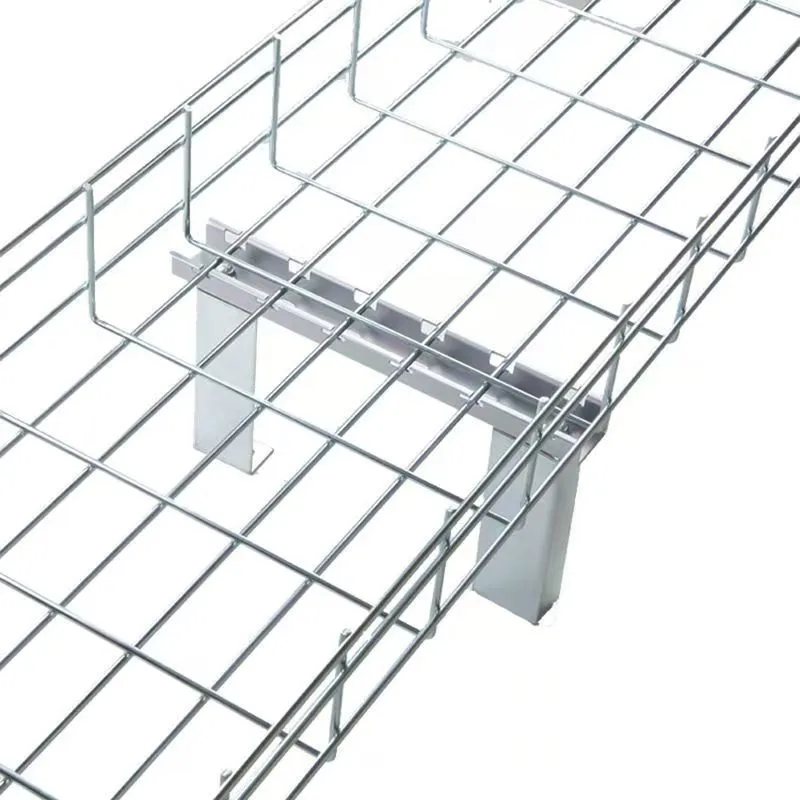

1. Data Centers / IDC Computer Rooms (Largest Application Scenario)Used for wiring separation of strong and weak electricity between server cabinets in computer rooms. The mesh structure delivers superior ventilation and heat dissipation, facilitating convenient cable maintenance in later stages and preventing overheating. It serves as the mainstream cable routing solution for computer rooms.On-site installation of wire mesh cable trays in computer rooms
